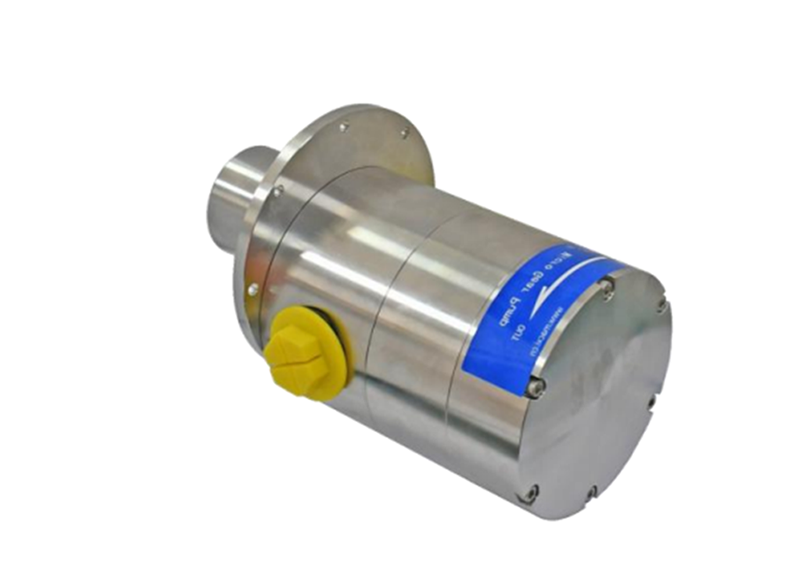

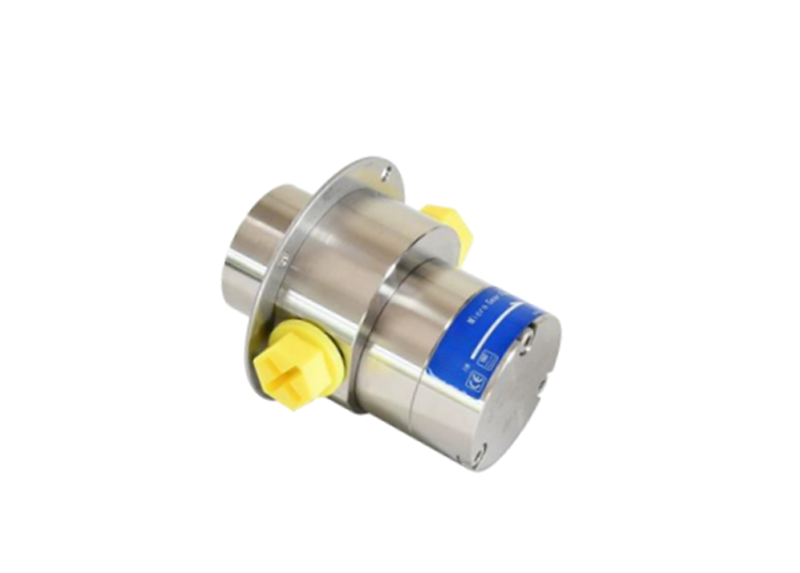

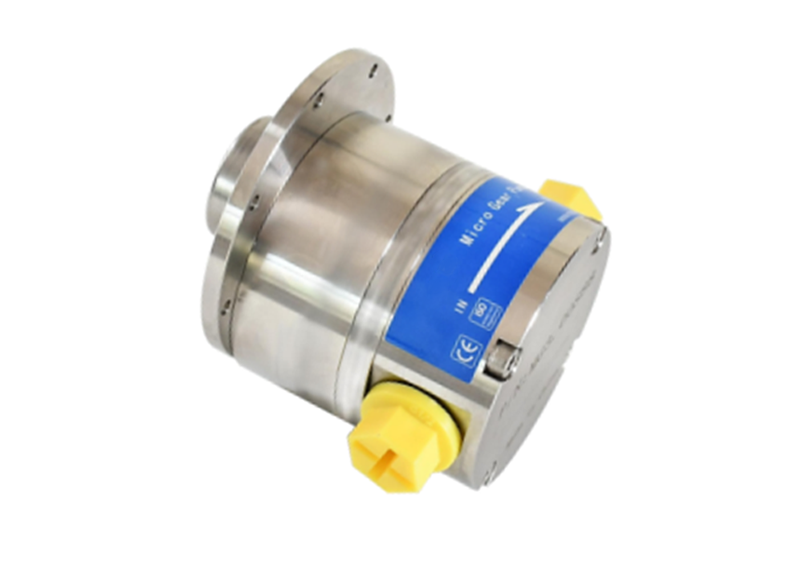

High-Pressure Magnetic Gear Pump Product Overview / product Introduction

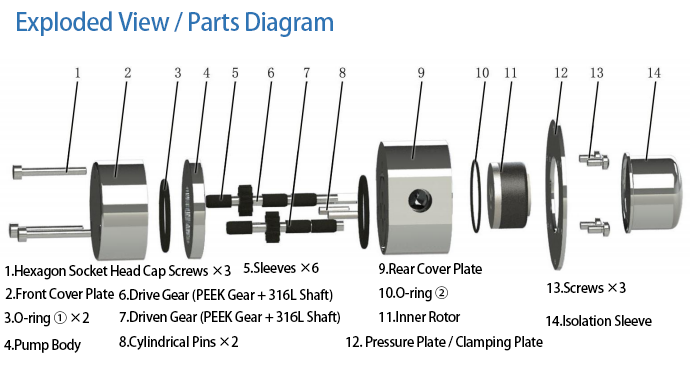

Pump Housing and Key Materials:
The high-pressure magnetic gear pump is a magnetically driven gear pump specifically designed for highly corrosive, high-purity, and micro-precision fluid transfer applications. The pump housing is constructed from food-grade 316L stainless steel, while the gears and bushings are made of modified high-strengt PEEK (polyetheretherketone) engineering plastic. Combined with dual-magnet strong magnetic coupling technology, this design ensures leak-free, corrosion-resistant, and low-pulsation stable delivery. It is particularly suitable for high-end applications such as chemical processing, precision instrument cooling, new energy equipment, and aerospace.
Installation Instructions for High-Pressure Magnetic Gear Pmps / Installation Instructions

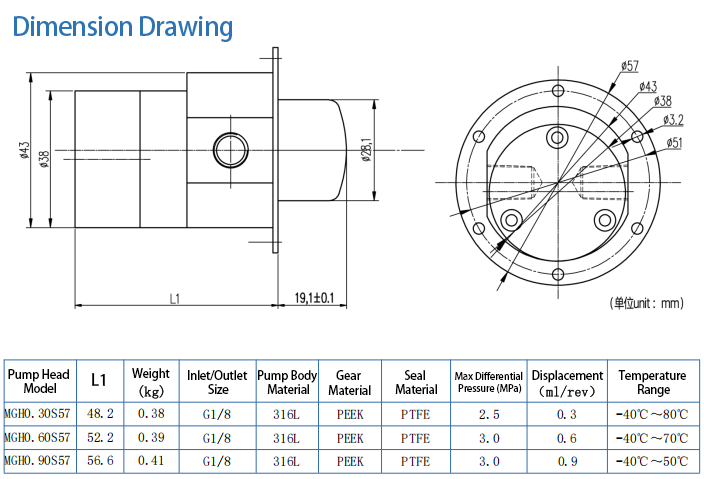

Performance Specifications:
Recommended operating pressure differential: ≤2 MPa (exceeding this limit will shorten the service life). Suitable media: solvents, acids and alkalis, organic halides, hydrocarbons, organic nitrogen compounds, inorganic reagents, coolants, etc.
Compatible motor types: Induction motors, servo motors (recommended for high-precision flow control).
Advantages of High-Pressure Magnetic Gear Pumps/ Superiority
Absolutely leak-free: The magnetic static sealing design eliminates the risk of leakage due to wear on moving seals, ensuring the safety of personnel and the environment.
Ultra-low noise: Precision gear meshing and magnetic drive ensure smooth and quiet operation.
Long-life design: PEEK self-lubricating gears and bushings paired with a 316L pump body provide corrosion resistance and wear resistance.
Stable outlet pressure: Based on the positive displacement gear pump principle, the output flow is pulsation-free and the pressure remains stable.
Simple structure: Easy to disassemble and clean, with convenient maintenance.
Applications of High-Pressure Magnetic Gear Pumps / Application fields
High-pressure magnetic gear pumps are widely used in the following industries and equipment:
Aerospace: Fuel delivery, cooling circulation systems
Chemical and Chemical Engineering: Reagent/chemical/film manufacturing, pharmaceutical equipment, molecular distillation equipment
Precision Instrument Cooling: Micro-cooling units for various laser equipment and instruments, liquid cooling systems for charging stations
Digital Printing and Printing: Inkjet printers, high-performance color printing equipment
New Energy and Environmental Protection: Methanol-to-hydrogen equipment, exhaust gas treatment systems

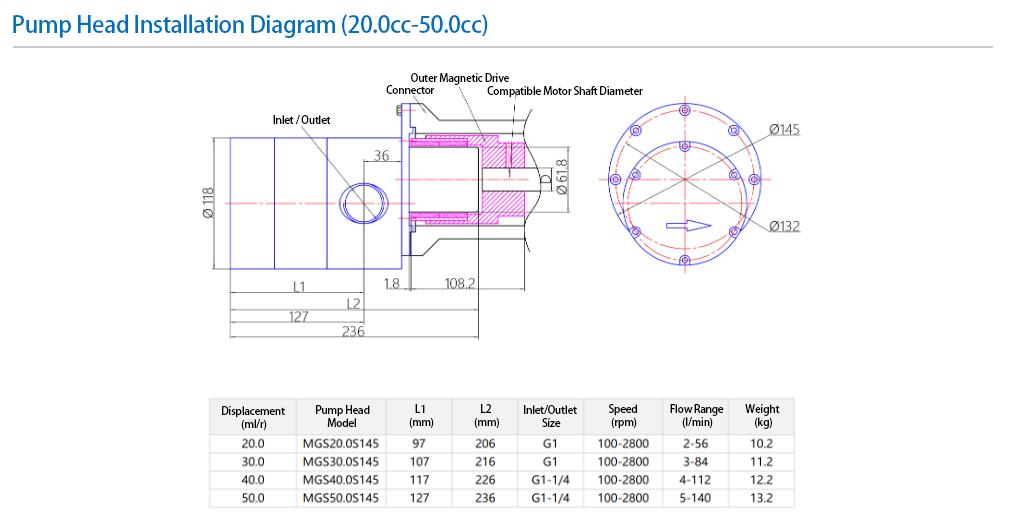

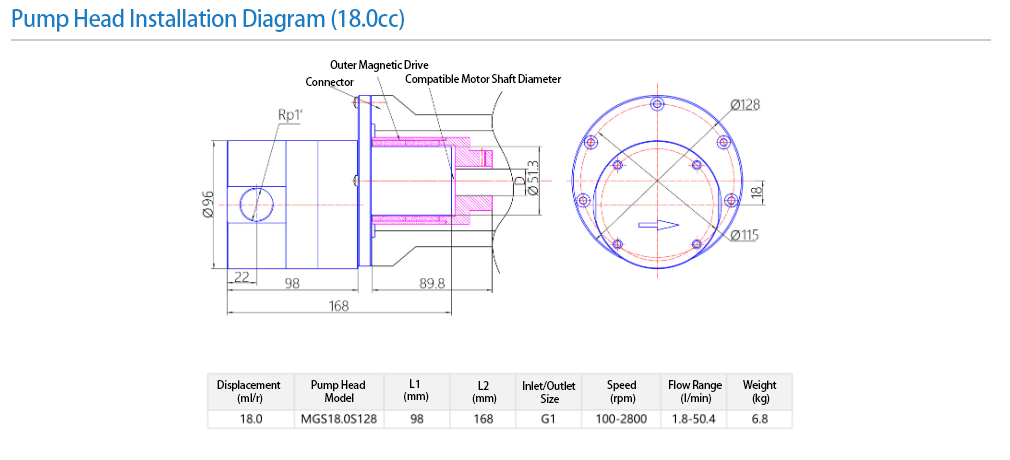

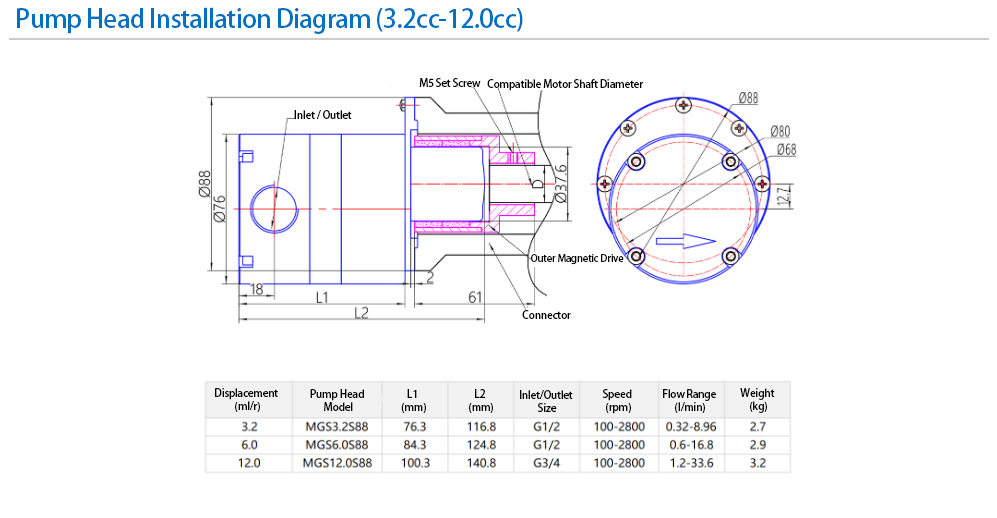

Installation Instructions for High-Pressure Magnetic Gear Pumps / Installation Instructions
The complete equipment includes the melt pump, inlet/outlet connectors, drive system, control system, etc. Customers can choose based on their specific situation. You may also contact Ruicheng Pump Industry's professional technical personnel, Engineer Liu:18698063785. Based on your specific circumstances, we will recommend a suitable melt pump product for you.
