Main Applications of RC-MW Melt Pump/ Main Uses
To better assist plastic extruders in metering, pressure stabilizing, and material conveying, thereby improving product quality, increasing output, and effectively reducing costs.
RC-MW Melt Pump Technical Parameters / Technical Parameter
Import quantity: 1
Number of outlets: 1
Displacement: 0.6~12,000 cc/r
Operating temperature: ≤300°C
Cleaning temperature: ≤400°C
Outlet pressure: ≤18 MPa
Maximum pressure differential: 10 MPa
Speed: ≤200 r/min
Recommended speed: 20–40 rpm
Heating method: Electric heating

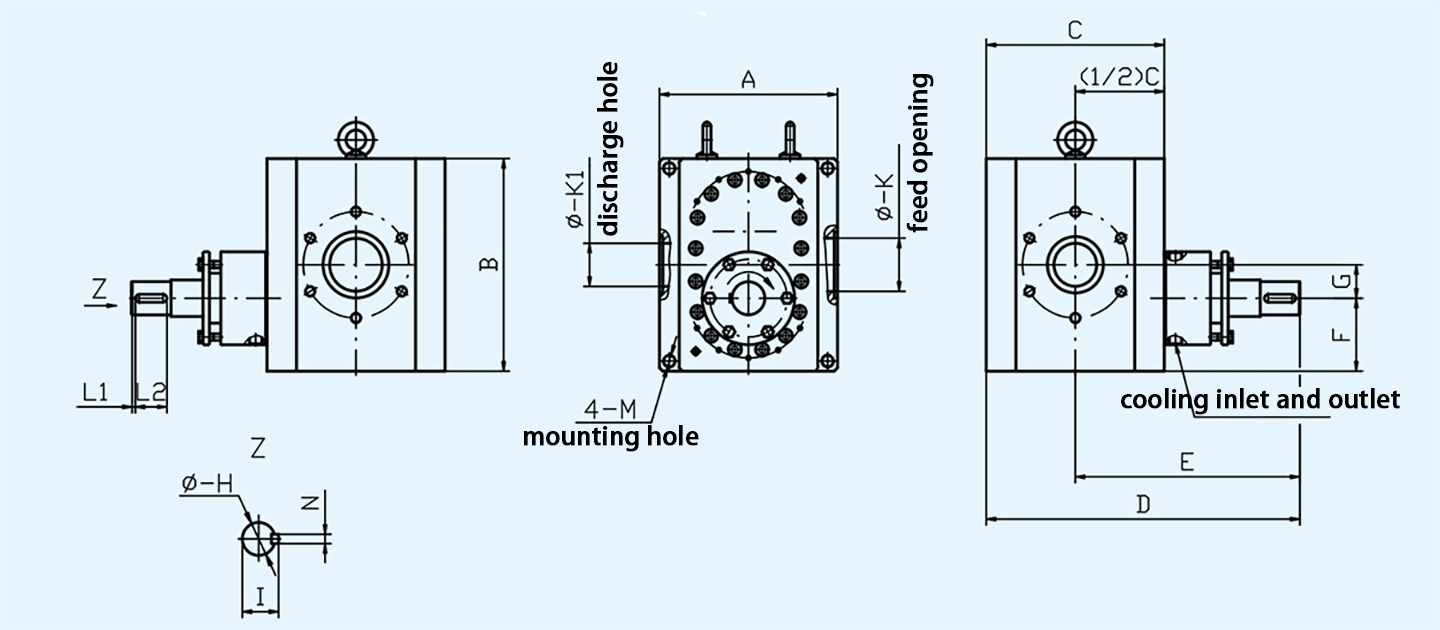

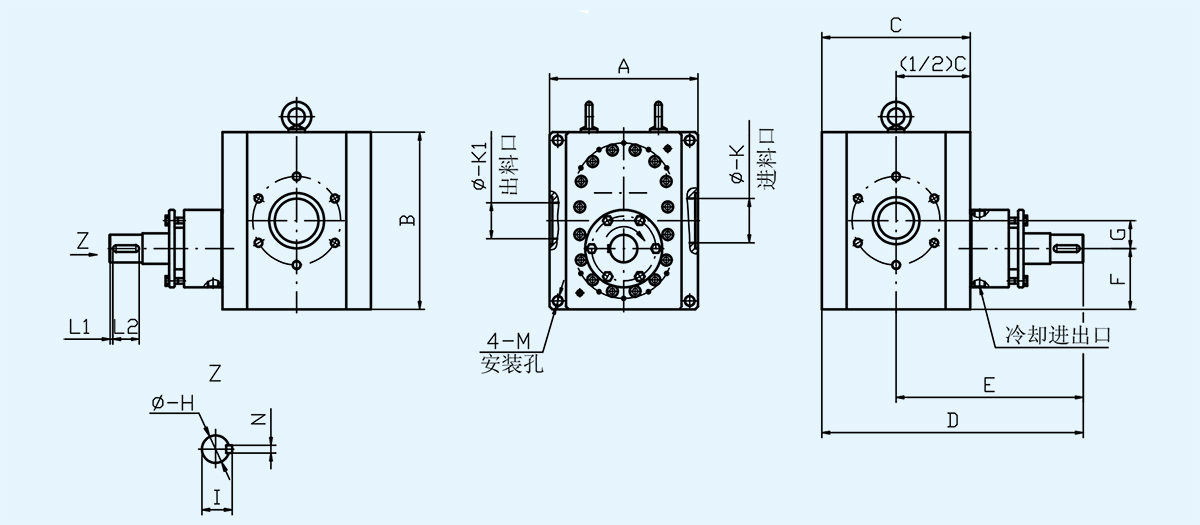

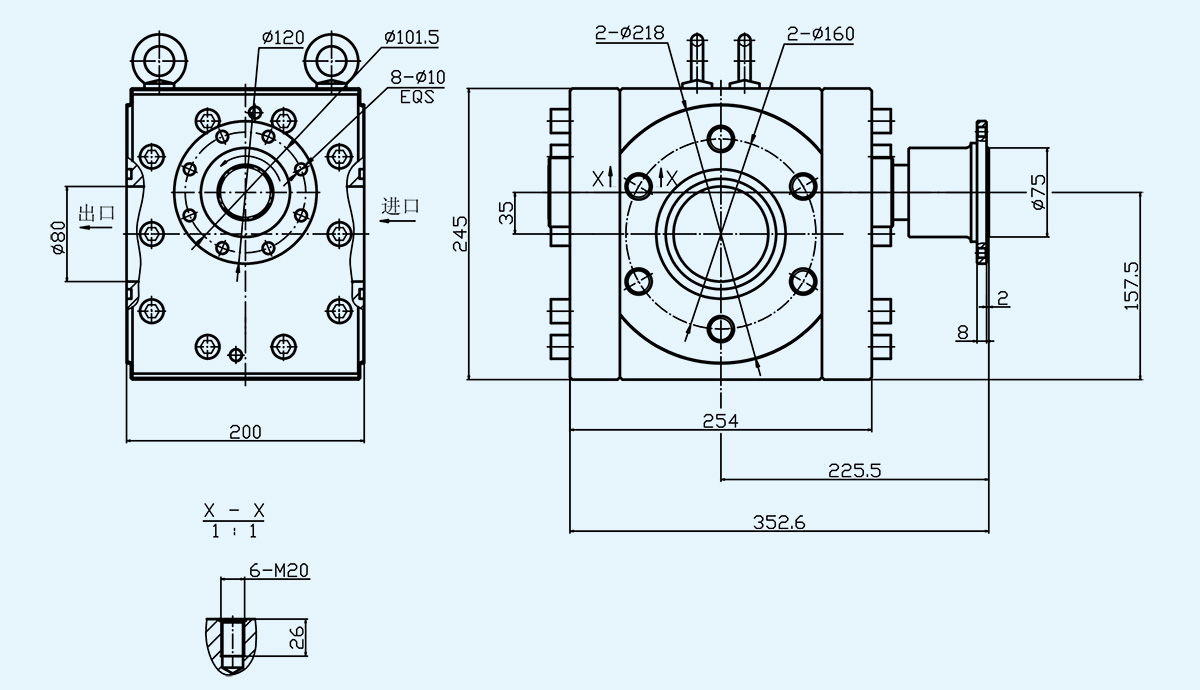

RC-MW Melt Pump Outline Drawing / Outline drawing

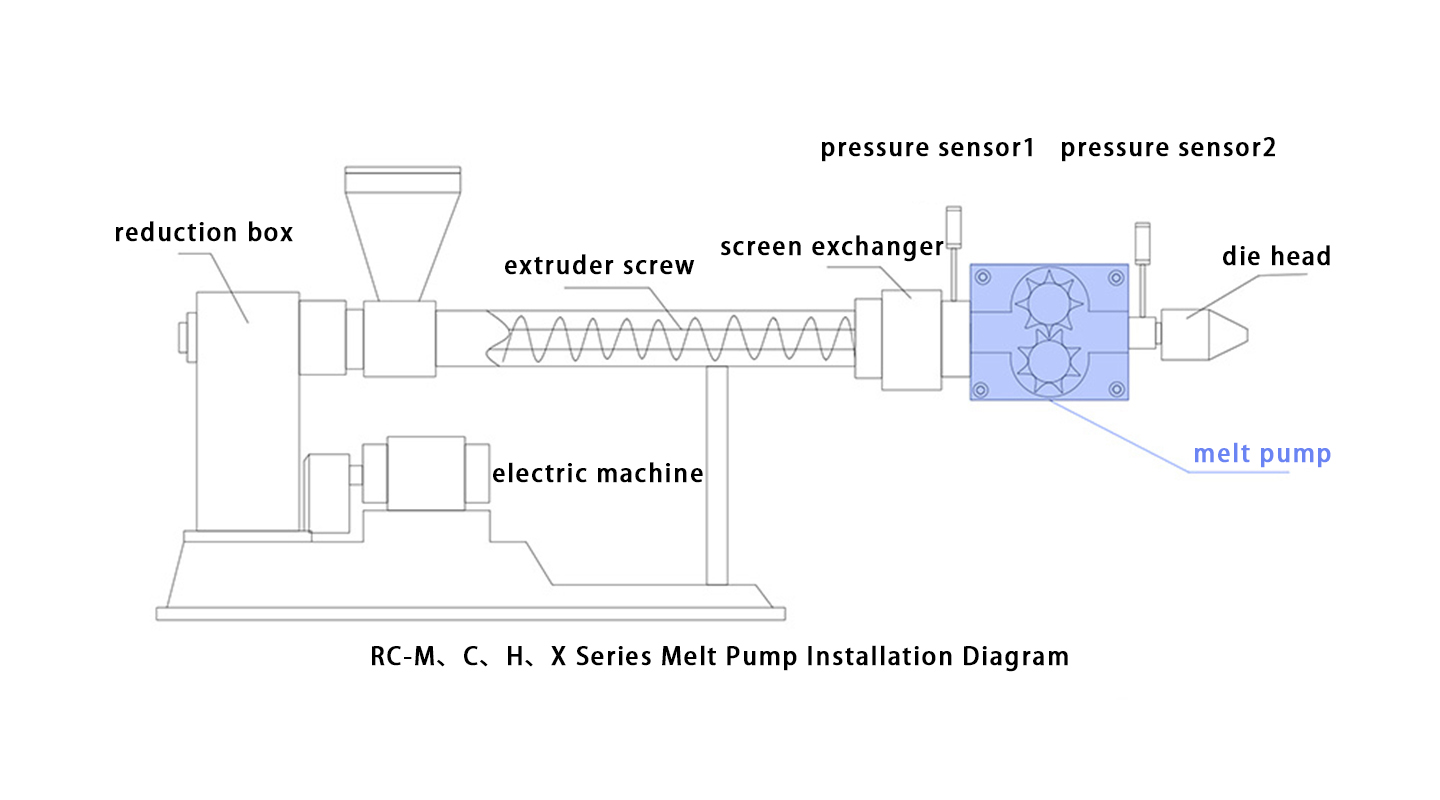

RC-MW Melt Pump Installation Instructions / Installation Instructions
The installation method of the plastic pump is flexible and diverse. Its input shaft can be placed either horizontally or vertically (applicable for both upward and downward orientations). The drive system typically consists of these components: motor, gear reducer, universal coupling, pump coupling head, and reducer coupling head.
The complete set of equipment includes plastic pump, inlet/outlet connectors, drive system, control system, etc. Customers can choose based on specific situations. You can also contact Ruicheng Pump's professional technician, Mr. Liu: 18698063785。Based on your specific situation, we will recommend suitable plastic pump products for you.
