| Q Series Glue Metering Pump - Small Displacement Main Applications |
Dispensing, Potting, Coating
| Q Series Glue Metering Pump - Small Displacement Product Introduction |
Inlet Ports | 1 |
| Outlet Ports | 1 |
Displacement
| 6.0cc/r~45cc/r
|
| Speed | 10~80r/min
|
| Outlet Pressure | ＜20MPa |
| Operating Temperature | ＜220℃ |
| Sealing Type | Combination Seal |

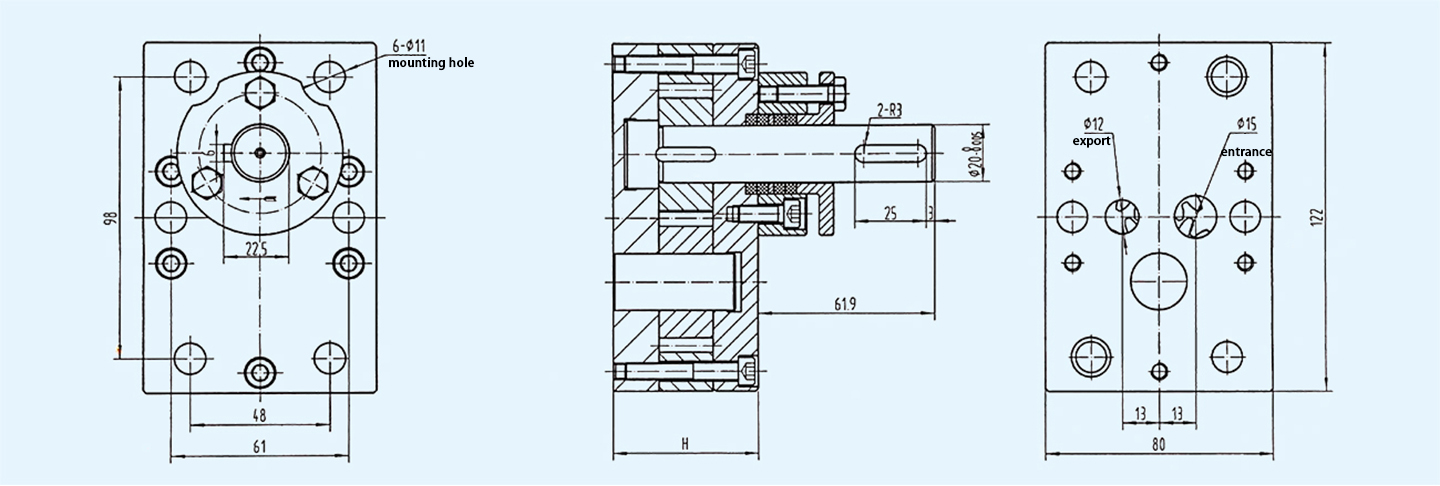

| Q Series Glue Metering Pump - Small Displacement Outline Drawing |
 |
Model
| JRG1×6CC | JRG1×9CC | JRG1×12CC | JRG1×15CC | JRG1×18CC | JRG1×20CC | JRG1×25CC | JRG1×30CC | JRG1×35CC |
H (mm)
| 41.6 | 46.3 | 51.1 | 55.7 | 60.8 | 63.5 | 71.4 | 79.3 | 87.1 |
| Q Series Glue Metering Pump - Large Displacement Main Applications |
Coating, Film Material, Polyurethane
| Q Series Glue Metering Pump - Large Displacement Product Introduction |
Inlet Ports | 1 |  |
| Outlet Ports | 1 |
Displacement
| 50cc/r~200cc/r
|
| Speed | 10~80r/min
|
| Outlet Pressure | ＜20MPa |
| Operating Temperature | ＜220℃ |
| Sealing Type | Combination Seal |

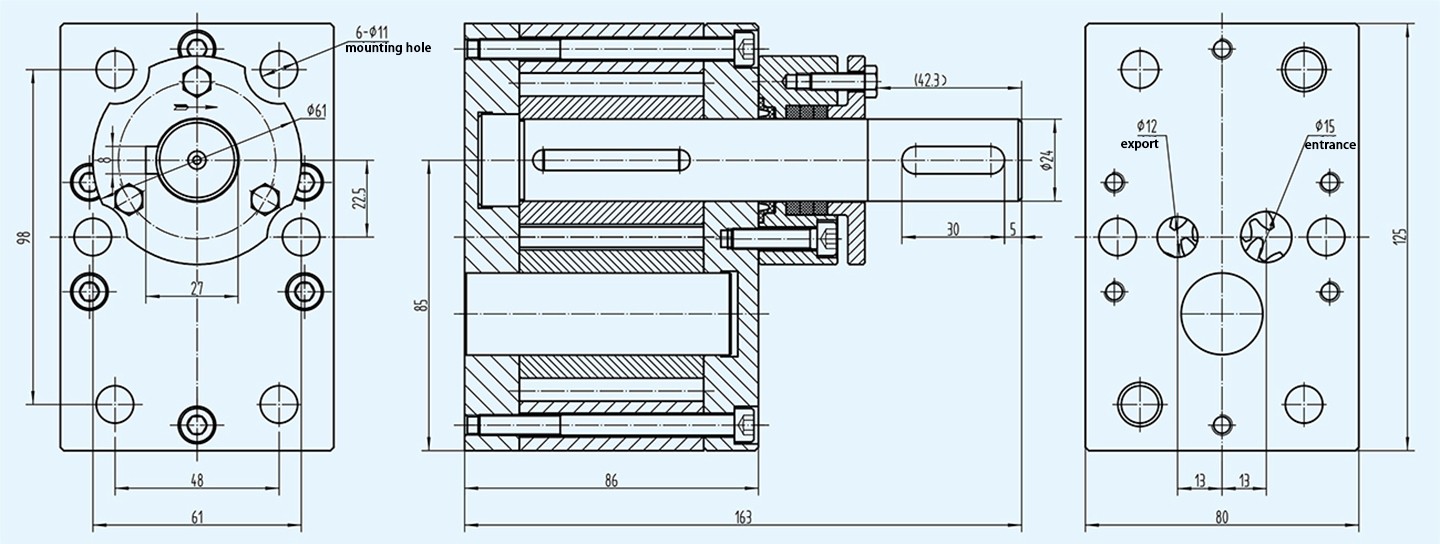

| Q Series Glue Metering Pump Outline Drawing |
Tianjin Ruicheng Pump Industry Co., Ltd. is based on technology and quality. If the above products do not meet your requirements, you can contact Ruicheng Pump's professional technician, Mr. Liu: 18698063785. Based on your specific situation, we will customize a suitable melt pump product for you.
