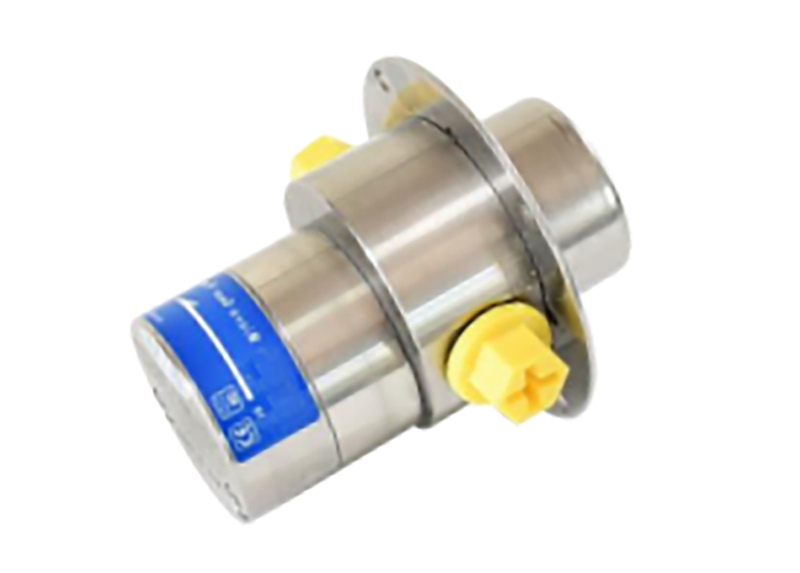

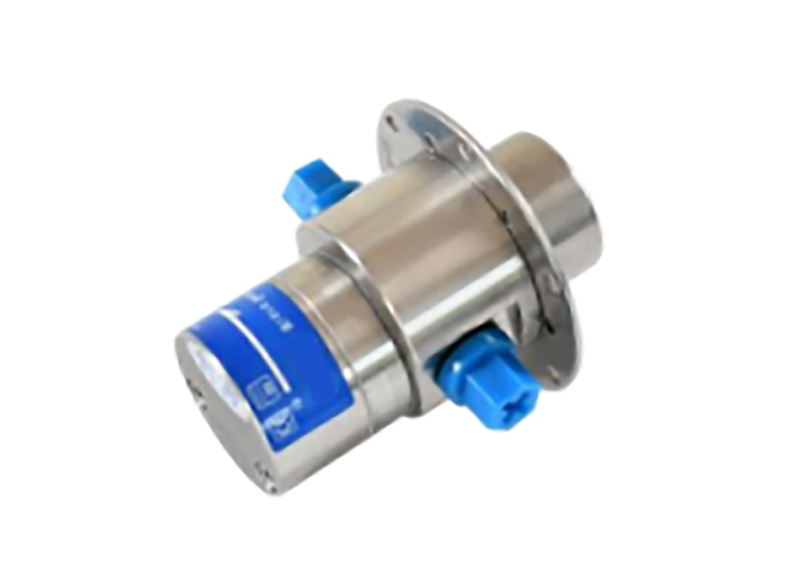

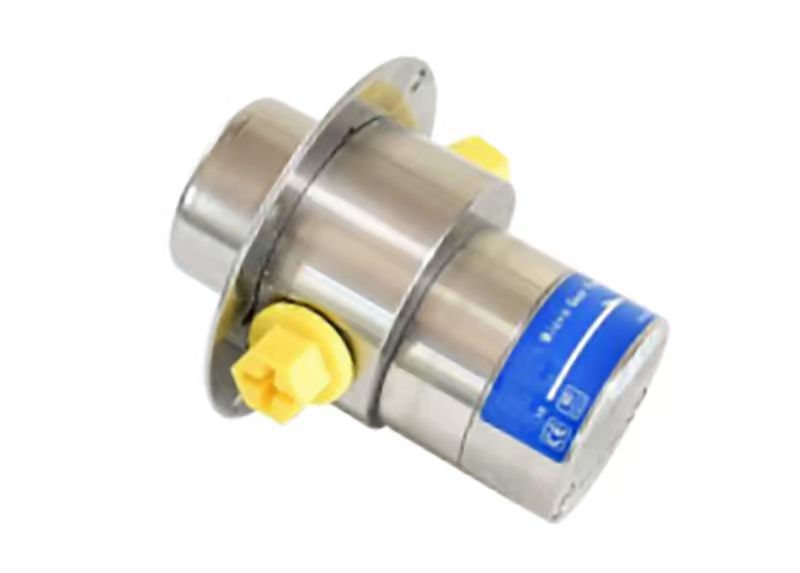

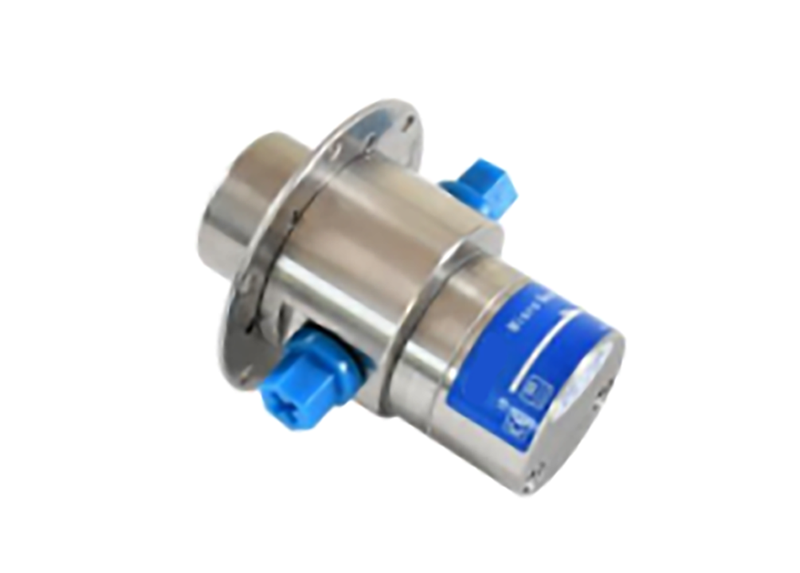

Product Overview of Standard Magnetic Drive Metering Pumps/  product Introduction

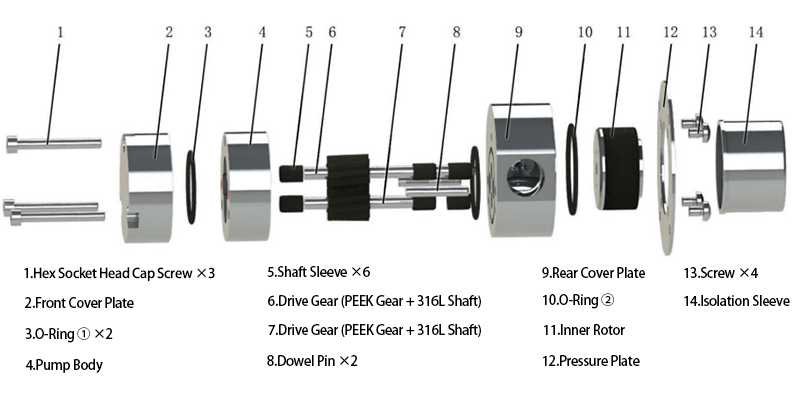

Pump Housing and Key Materials:

The pump housing is constructed from food-grade 316L stainless steel, which offers excellent corrosion resistance and meets hygiene standards, making it suitable for a wide range of media. The gears and shaft sleeves are made of modified high-strength PEEK (polyetheretherketone), a material that provides superior mechanical strength, high-temperature resistance, and chemical corrosion resistance. The sealing system comes standard with FKM (fluorocarbon rubber); however, users may also select sealing materials such as PFA, EPDM, or FFKM based on the characteristics of the medium to meet the requirements of different operating conditions.

Performance Specifications:

The gear pump has an overall pressure rating of 1 MPa and is suitable for use with most solvents, acidic and alkaline solutions, organic halides, hydrocarbons, organic nitrogen compounds, and inorganic reagents.

Compatible Motor Types：

This product is compatible with a variety of motor drive types, including: brushless DC motors, brushed DC motors, induction motors, and servo motors.

Advantages of Standard Magnetic Gear Pumps/ Superiority

1.Leak-free: The magnetically driven design eliminates dynamic sealing points, preventing media leakage.

2.Low noise: Smooth operation with low noise levels, making it suitable for applications with strict noise requirements.

3.Long Service Life: Key components are made of high-strength, wear-resistant materials, extending the overall service life of the equipment.

4.High Corrosion Resistance: Material selection is optimized for corrosive media, making it suitable for a wide range of chemical environments.

5.Stable Outlet Pressure, No Pulsation: The positive displacement characteristics inherent to gear pumps ensure steady flow and pressure output.

6.Simple Structure, Easy Maintenance: Compact design, easy to disassemble and reassemble, with minimal routine maintenance required.

Applications of Standard Magnetic Gear Pumps/  Application fields

Standard magnetic gear pumps are widely used in the following industries and equipment:

1.Fluid delivery systems in aerospace vehicles.

2.The chemical and petrochemical industries, including equipment for reagent, chemical, film, and pharmaceutical manufacturing.

3.Micro-cooling units for various laser devices and instruments.

4.Manufacturing of inkjet printers and inkjet coders.

5.High-performance color printing equipment.

6.Liquid cooling systems for electric vehicle charging stations.

7.Molecular distillation equipment.

8.Methanol-to-hydrogen production equipment.

9.Exhaust gas treatment systems

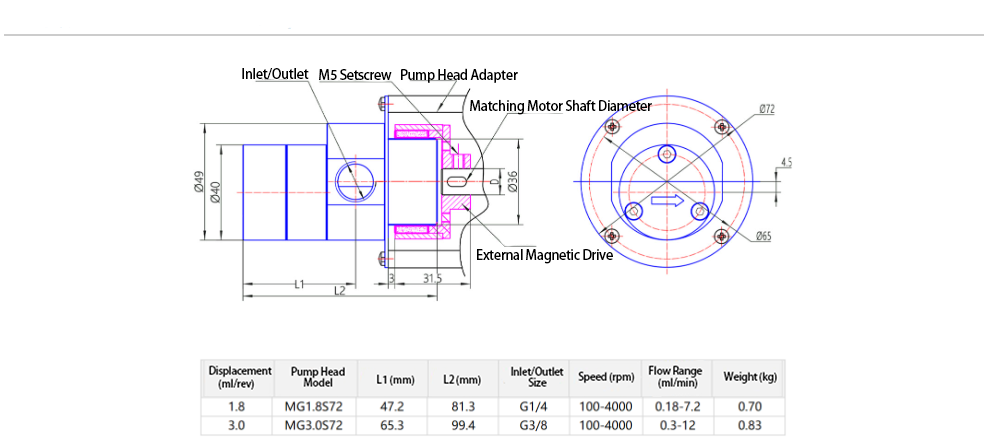

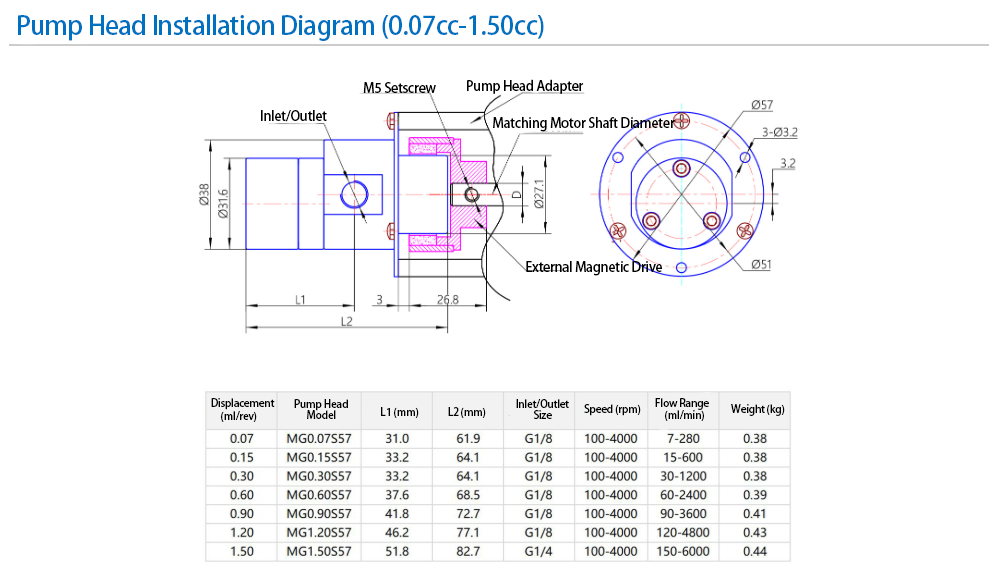

Installation Instructions for Standard Magnetic Gear Pumps/  Installation Instructions

The complete equipment includes the melt pump, inlet/outlet connectors, drive system, control system, etc. Customers can choose based on their specific situation. You may also contact Ruicheng Pump Industry's professional technical personnel, Engineer Liu:18698063785. Based on your specific circumstances, we will recommend a suitable melt pump product for you.
