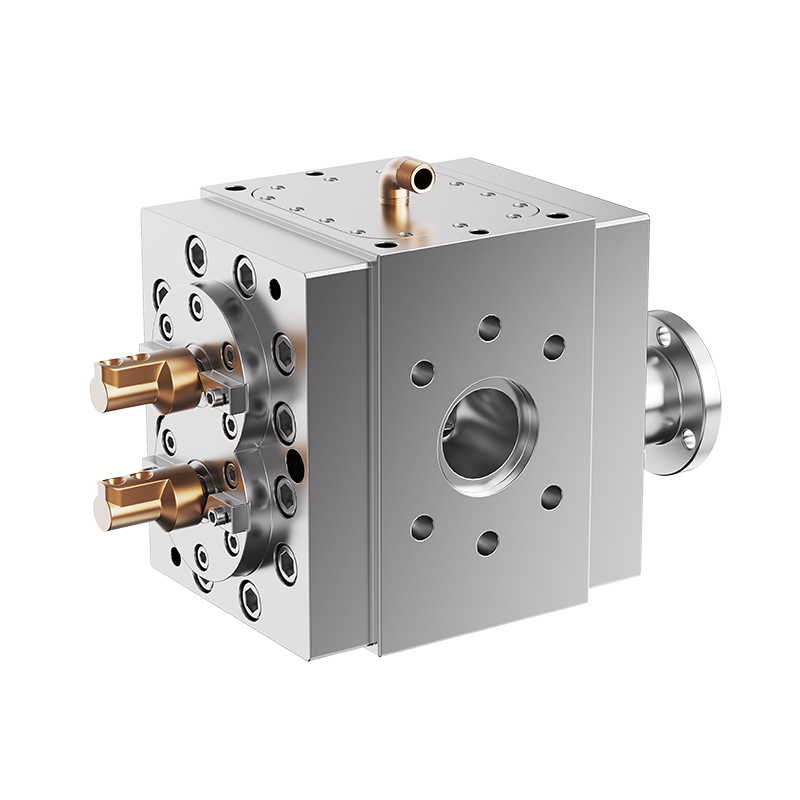

| Features of RC-XD Single-Drive Rubber Gear Pump |
PVC BR CR EPDM NBR SBR Natural Rubber Other Degradable Materials
| Main Application Range of RC-XD Single-Drive Rubber Gear Pump |
1. High surface finish, nearly mirror-like, suitable for heat-sensitive materials;
2. Optimized flow channel and lubrication system with high-efficiency self-cleaning function, no residue, no dead corners;
3. Suitable for high pressure (≤40MPa) and high viscosity (≤40,000Pa·s) conditions;
4. Precise structure and high temperature control accuracy.
| Operating Parameters of RC-XD Single-Drive Rubber Gear Pump |
Medium Viscosity: 1~40000Pa・s (1,000~40,000,000cP)
Inlet Pressure: 0~30MPa
Outlet Pressure: 0~40MPa
Maximum Pressure Difference: 25MPa
Operating Temperature: ≤350℃
| Models and Technical Parameters of RC-XD Single-Drive Rubber Gear Pump |
| Model | Displacement cc/r | Inlet Pressure (MPa) | Outlet Pressure (MPa) | Operating Temp. ℃ | Recommended Maximum Flow Rate m³/h |
(Most Common) High Viscosity 1000~8000Pa·s | Ultra-High Viscosity ＞8000Pa·s） | Drive Power |
| RC-X-31.5 | 31.5 | 0~30 | ≤35
| ≤350
| ≤80 | ≤42 | 5.5 |
| RC-X-50 | 50 | ≤120 | ≤70 | 7.5 |
| RC-X-100 | 100 | ≤230 | ≤120 | 11 |
| RC-X-150 | 150 | ≤350 | ≤150 | 15 |
| RC-X-200 | 200 | ≤500 | ≤250 | 18.5 |
| RC-X-250 | 250 | ≤600 | ≤300 | 22 |
| RC-X-315 | 315 | ≤700 | ≤350 | 30 |
| RC-X-500 | 500 | ≤1000 | ≤500 | 37 |
| RC-X-800 | 800 | ≤1700 | ≤950 | 45 |
Note: The displacement range covers from 5cc/r to 8000cc/r. If you have requirements, please consult Engineer Liu: 18698063785 for inquiry!
| Structural Material of RC-XD Single-Drive Rubber Gear Pump |
Pump Body: Nitriding Steel / Tool Steel, internal flow channel mirror-finished
Gears: Straight / Helical Gears, Special Alloy Steel / Tool Steel, mirror-finished
Bushings: Tool Steel / Special Alloy Steel
Cooling Method: Shaft-end cooling system, circulating water cooling
Shaft Seal: Spiral external discharge
Shaft Type: Single shaft drive, with water cooling
Specification/Flow Range: 5CC~8000CC

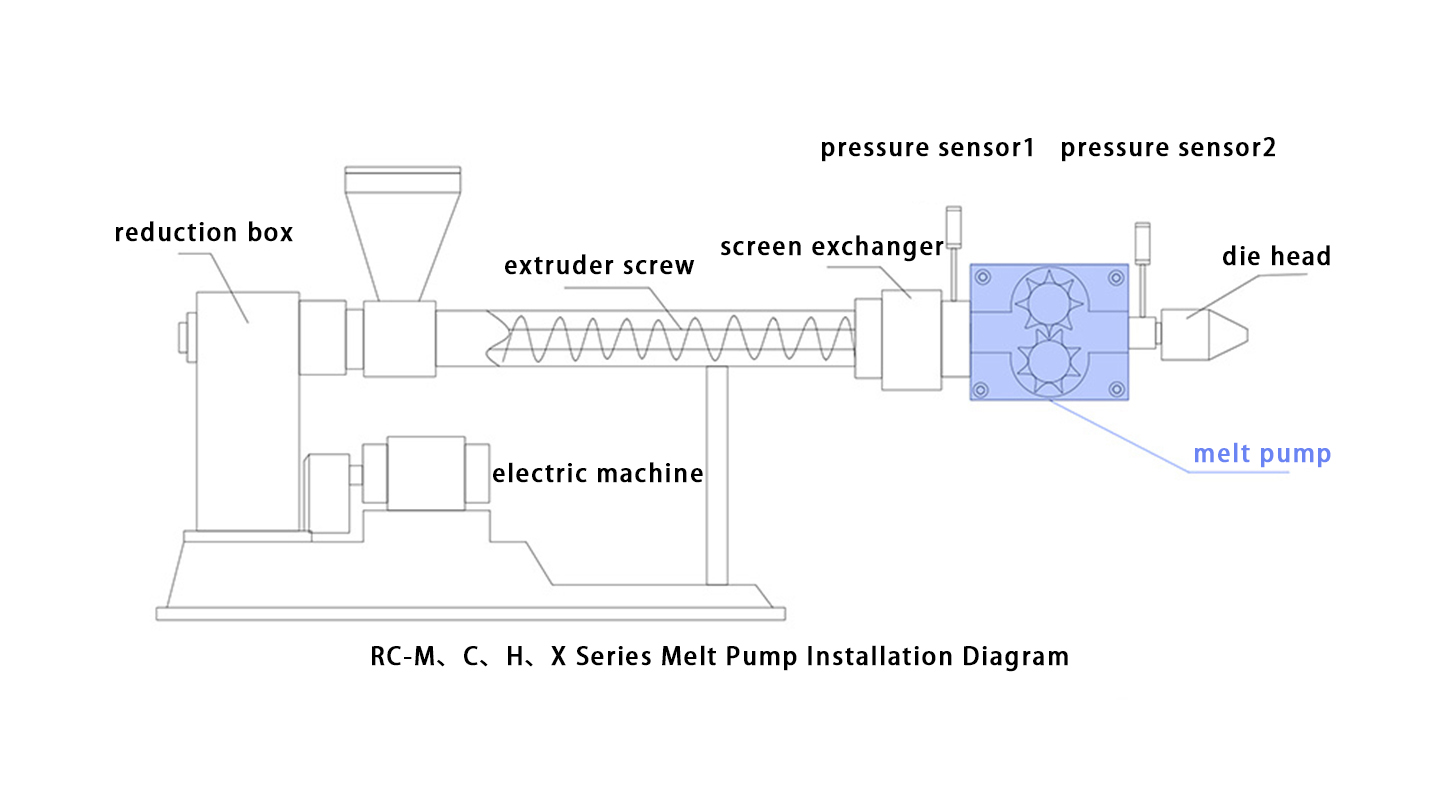

| Installation Instructions for RC-XD Single-Drive Rubber Gear Pump |
The X series rubber pump offers flexible installation options. Its input shaft can be positioned either horizontally or vertically (both upward and downward orientations are suitable). The drive system typically consists of the following components: motor, reducer, universal coupling, pump connection head, and reducer connection head.
The complete equipment includes rubber pump, inlet/outlet connectors, drive system, control system, etc. Customers can choose according to specific situations. You can also contact Ruicheng Pump Industry's professional technical personnel, Engineer Liu:18630882198. Based on your specific situation, we will recommend suitable rubber pump products for you.
